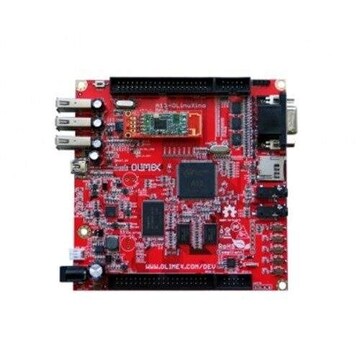

Wifi in Pune
Read More
- A13 Cortex A8 processor at 1GHz, 3D Mali400 GPU
- 512 MB RAM (2 x 256Mbit x 8)
- 6-16VDC input power supply, noise immune design
- 4GB NAND flash
- 3 + 1 USB hosts, 3 available for users 1 for WIFI RTL8188CU 802.11n 150Mbit module on-board
- 1 USB OTG which can power the board
- Battery option and connector
- Android OS ready to use in the NAND memory
- SD-card connector for booting optional Linux image
- VGA video output
- LCD signals are availabile on the connector so you still can use LCD if you diasble the VGA/HDMI
- Audio Output
- Microphone Input
- 4 Mount holes
- RTC PCF8536 on board for real time clock and alarms
- 5 Keys on board for android navigation
- UEXT connector for connecting addtional UEXT modules like Zigbee, Bluetooth, Relays, etc
- GPIO connector with 68/74 pins and these signals:
- 17 for adding another NAND flash;
- 22 for connecting LCDs;
- 20+4 including 8 GPIOs which can be input, output, interrupt sources;
- 3x I2C;
- 2x UARTs;
- SDIO2 for connecting SD cards and modules;
- 5 system pins: +5V, +3.3V, GND, RESET, NMI
- Optional low-cost 7" LCD with touchscreen
Embedded Boards & Kit,Power Electronic Lab,IoT Lab
Get Latest Price
Logsun Systems
pune
pune
4a, Shree Sadgurunivas Society, S. No. 16/5/1, Hingane Khurd, Sinhgad Road, Hingne Khurd, Pune - 411
Contact Supplier + 91xxxxxxxx
