High Precision Focusing,Enhanced Resolution,Durable Material Design,Wide Energy Range Compatibility,Optimized Beam Intensity,Customizable Geometry,Ideal for Scientific & Industrial Use
X-ray microscopy and imaging systems,Non-destructive testing (NDT) and inspection,Semiconductor and electronics inspection,Material science and crystallography,Biomedical imaging and research,Synchrotron beamline optics
High Precision Focusing,Enhanced Resolution,Durable Material Design,Wide Energy Range Compatibility,Optimized Beam Intensity,Customizable Geometry,Ideal for Scientific & Industrial Use

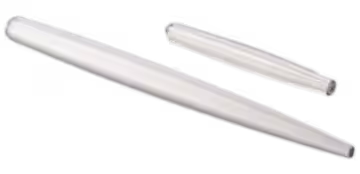

X-ray capillary optics are used to guide and shape X-radiation. Such systems are either monocapillaries, such as cylindrical, ellipsoidal or paraboloidal capillaries or polycapillaries, consisting of a monolithic system of a large number of hollow capillary channels. Their function is based on the effect of total external reflection of X-rays from the internal smooth surfaces of the capillary channels. For incidence angles lower than the critical angle of total reflection the reflection coefficient reaches values near to 100 percent and the X-radiation is guided with low losses through the optics. The critical angle depends mainly of the reflecting material and the X-ray photon energy. The basic material for X-ray capillaries is glass. The low roughness of reflective glass surfaces leads to a low portion of diffuse scattered X-rays, so an efficient transport of X-radiation through glass capillaries can be realised. Due to these properties capillary optics are able to steer X-rays from source to sample in such a way that a high intensity is concentrated in an accurately defined area on the sample surface.
X-ray optics may be distinguished by the number of reflections from internal capillary surfaces. There are single-bounce and multiple-bounce capillary systems.
